Turntide Axial Flux Motor 140

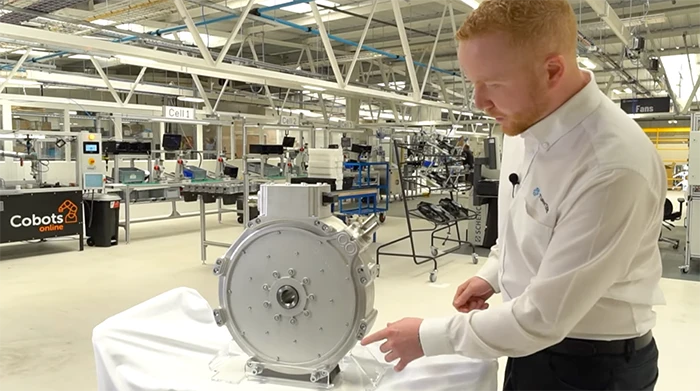

Introducing Turntide’s AF140: An Advanced High-Torque Axial Flux Motor

Turntide Axial Flux Motor AF140In the dynamic realm of smart motor systems, Turntide proudly presents the Axial Flux Motor 140, a pinnacle of innovation that redefines performance and efficiency in direct drive applications. Evolving from its predecessors, the AF140 boasts a groundbreaking design featuring a short motor length, flat front and back faces for seamless mounting, and a compact structure that sets the stage for unprecedented power density at 5.2 kW/kg (weight as delivered dry). With a peak efficiency exceeding 95%, this motor guarantees a powerful, energy-efficient operation, tailor-made for various high-torque applications.

Unleashing Unprecedented Efficiency

Engineered for excellence, Turntide’s AF140 boasts low cogging and low ripple torque, ensuring a smooth and quiet operation that meets the demands of direct drive applications. The optional IP67 rated shaft seals enhance durability, while the low inertia composite rotor showcases excellent dynamic stability. Liquid cooling, utilizing water/glycol, takes performance to new heights, complemented by integrated PT100 winding temperature sensors and a Sin/Cos resolver compatible with most commercially available inverters.

Revealing Specifications for Superior Performance

Operating at inverter supply voltages up to 800VDC, the AF140 stands out as a versatile solution in the high-torque landscape. At 600VDC, this smart motor system achieves a maximum speed of 5,000 rpm, continuous torque of 260 Nm, and a peak output power of 220 kW. Weighing 43 kg (weight as delivered dry), it sets a new standard for power-to-weight ratios, embodying a game-changer in efficiency, design, and adaptability.

Turntide Axial Flux Motor AF140 expandedUnderstanding Axial Flux Motors

Axial flux motors, exemplified by the AF140, represent a distinctive type of electric motor where the magnetic flux flows parallel to the axis of rotation. This innovative design, featuring a short axial length, ensures a more compact structure and enhanced power density. Known for their efficiency, reduced cogging, and quiet operation, axial flux motors are ideal for diverse applications, including electric vehicles, robotics, renewable energy systems, and high-torque scenarios. Learn more by watching Lesics’ great video explaining them.

Elevate Your Engineering with Turntide’s AF140 Axial Flux Motor – Unrivaled Power and Precision

Unlock the full potential of your projects with Turntide’s AF140 Axial Flux Motor. Tailored for space efficiency, this smart motor system offers a robust solution for direct drive applications. Explore unparalleled performance with features such as IP67 rated shaft seals, liquid cooling, and integrated temperature sensors. Delve into specifications that not only meet but surpass industry standards, operating at inverter supply voltages up to 800VDC. Elevate your engineering endeavors with the AF140 – where innovation seamlessly meets efficiency.

Check out all of our Axial Flux Motors:

Model AF125 AF130 AF140 AF230 AF240 AF340 AF440
Maximum Speed (rpm) 12,000 8,000 5,000 8,000 5,000 5,000 5,000
Continuous Torque (Nm) 100 145 260 290 520 780 1,040
Peak Torque 20s(Nm) 220 350 600 700 1,200 1,800 2,400
Nominal Output Power (kW) 59 64 94 128 188 282 76
Peak Output Power (20s) (kW) 100 140 220 280 440 660 880
Dimensions* LxD (mm) 110×258 110×300 115×380 212×300 212×380 333×380 443×380
Weight dry(kg) 22 30 43 58 82 122 160
